Product Info

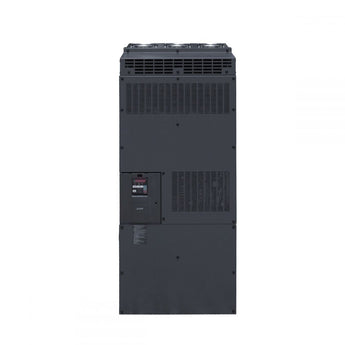

Inverter DC; Pn: 355-500kW; DC 537-707V;In max: 962A;(400kW; 770A); IP00
| Type | FR-A800 ADVANCED INVERTER |
| Minimum Rated Voltage (V) | 430 |
| Min. Permissible Voltage (V) | 430 |
| Maximum Rated Voltage (V) | 780 |
| Max. Permissible Voltage (V) | 780 |
| Current Type | DC |
| Phases | 1 |
| Rated Output Current SLD (A) | 962 |
| Rated Output Current LD (A) | 866 |
| Rated Output Current ND (A) | 770 |
| Rated Output Current HD (A) | 683 |
| Rated Motor Capacity SLD (kW) | 500 |
| Rated Motor Capacity LD (kW) | 450 |
| Rated Motor Capacity ND (kW) | 400 |
| Rated Motor Capacity HD (kW) | 355 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| Type of Terminal Block | PLUG |
| Expandable | YES |
| RS-485 | 2 |
| USB | 2 |
| Built-In Network | MODBUS-RTU |
| Protection Class | IP00 |
| Power Loss (W) | 7370 |
| Standby Power Consumption (W) | 111 |
| Leakage Current (mA) | 2(DELTA) / 1(STAR) |
| Width (mm) | 680 |
| Height (mm) | 1580 |
| Depth (mm) | 440 |
| Weight (kg) | 243 |
