Mitsubishi Electric – MIT128728
MR-HDP01
All prices are exclusive of VAT. For foreign orders, VAT can be shifted if we receive a valid VAT number.
Model Number |
Description |
Stocked Items |
MR-HDP01 |

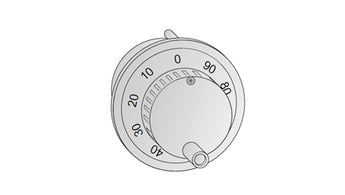

Manual pulse generator, Pulse resolution: 25PLS/rev(100PLS/rev after magnification by 4). Permitted speed: 200r/min |
S |
Model Number |
MR-HDP01 |
Stocked Item |
S |
Pulse Resolution Method |
25 PLS/rev (100 PLS/rev at magnification of 4) |
Power Supply Voltage |
4.5 to 13.2VDC |
Consumption Current |
60 |
Life |
1,000,000 revolutions at 200 rpm |
Permitted Axis Load |
Radial load: Max. 19.6N; Thrust load: Max. 9.8N |
Pulse Signal Status |
2 signals: A phase, B phase, 90° phase difference |
Friction Torque |
0.1N/m (at 20°C (68°F)) |
Operating Temperature |
-10°C to +60°C (14°F to 140°F) |
Weight kg (lbs) |
0.4 (0.88) |
