B - Limited availability
Mitsubishi Electric – MIT497849

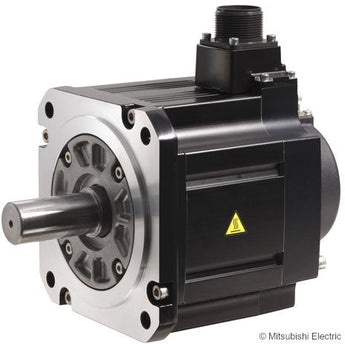

HG-SNS152K
€700,00
/
All prices are exclusive of VAT. For foreign orders, VAT can be shifted if we receive a valid VAT number.
Servo motor; HG Series; Power 1.5 kW; Torque 7.16 Nm, max. 21.5; Keyway
| Series | MELSREVO-JE |
|---|---|
| Type | HG-SNS |
| Rated Capacity (kW) | 1.5 |
| Rated Torque (Nm) | 7,16 |
| Maximum Torque (Nm) | 21.5 |
| Rated Speed (rpm) | 2000 |
| Maximum Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 16 |
| Brake | NO |
| Shaft Type | KEYWAY |
| Protection Class | IP67 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Type | 22-BIT |
| Encoder Resolution (p/rev) | 4194304 |
