Product Info

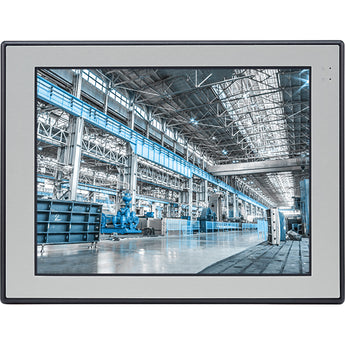

Mitsubishi APPC1260T-A01 industriële Panel PC
De APPC1260T-A01 is een compacte industriële 12,1 inch Panel PC uit het Mitsubishi Electric Industrial PC-programma. Deze IPC combineert een Intel® N97 platform met een robuust resistive touchscreen voor betrouwbare machinebediening en industriële visualisatie.
Dankzij het fanless ontwerp, de IP65-frontbescherming en uitgebreide industriële aansluitmogelijkheden is deze Panel PC geschikt voor gebruik in machinebouw, productieomgevingen en industriële automatisering.
Belangrijkste kenmerken
- 12,1 inch XGA industriële Panel PC in 4:3 formaat
- Fanless ontwerp voor industriële betrouwbaarheid
- Intel® Processor N97 Quad Core, Alder Lake-N platform
- 5-wire resistive touchscreen
- 8 GB DDR5 geheugen standaard
- Ondersteuning tot 16 GB DDR5 geheugen
- Dual 2.5GbE LAN poorten
- USB-C met DisplayPort ondersteuning
- M.2 opslag en uitbreidingsmogelijkheden
- IP65 front panel
Typische toepassingen
- Compacte machinebediening
- SCADA- en visualisatiesystemen
- Industrieel dashboard en monitoring
- Data logging en operatorpanelen
- Machine-integratie met meerdere netwerken
- Retrofit van bestaande IPC- of HMI-systemen
Technische specificaties
| Artikelnummer | APPC1260T-A01 |
|---|---|
| Type | Industriële Panel PC / IPC |
| Display | 12,1 inch LED, 4:3 formaat |
| Resolutie | 1024 × 768 pixels (XGA) |
| Helderheid | 500 cd/m² |
| Contrast ratio | 700:1 |
| Kleuren | 16,7 miljoen kleuren |
| Kijkhoek | 70° boven / 70° onder / 80° links / 80° rechts |
| Touchscreen | 5-wire resistive touchscreen, flush panel type |
| Processor | Intel® Processor N97, Alder Lake-N platform |
| BIOS | AMI BIOS |
| TPM ondersteuning | TPM 2.0 |
| Geheugen | 8 GB DDR5 standaard, uitbreidbaar tot 16 GB |
| Opslagmogelijkheden | 1 × M.2 Key B 2242 SATA |
| Ethernet | 2 × Intel® I226-IT 2.5GbE LAN |
| USB | 2 × USB 3.2 Type-A + 1 × USB-C |
| USB-C functionaliteit | USB 3.2 + DisplayPort 1.4a Alt Mode tot 4K@60Hz |
| Display-uitgangen | 1 × DP1.4a + 1 × USB-C DisplayPort Alt Mode |
| Seriële communicatie | 2 × RS232/422/485 auto flow control + 1 × RS232 |
| Audio | Line-out, Realtek ALC888S-VD HD audio codec |
| Uitbreiding | Mini PCIe + M.2 voor Wi-Fi / LTE / 5G modules |
| Voeding | 24VDC ±20% |
| Beschermingsklasse | IP65 aan de voorzijde |
| Montage | Panel mount, wall mount, stand mount en VESA 100 × 100 mm |
| Bedrijfstemperatuur | -10°C tot 55°C |
| Opslagtemperatuur | -20°C tot 75°C |
| Luchtvochtigheid | 10% tot 90% RH, niet-condenserend |
| Afmetingen | 317 × 243 × 62,5 mm |
| Gewicht | 3,7 kg |
| Certificeringen | CE approval, FCC Class A |
| Ondersteunde besturingssystemen | Windows 11 en Windows 10 64-bit |
Compacte industriële IPC met moderne connectiviteit
De APPC1260T-A01 is ontworpen voor toepassingen waarbij een compacte maar moderne industriële Panel PC nodig is voor visualisatie, bediening en communicatie met industriële apparatuur.
Dankzij ondersteuning voor 2.5GbE netwerken, USB-C, DisplayPort en uitbreidingen voor Wi-Fi, LTE en 5G is deze IPC geschikt voor moderne industriële netwerken en Industry 4.0 toepassingen.
- Compact 12,1 inch industrieel systeem
- Modern Intel® N97 platform met DDR5 geheugen
- Ondersteuning voor extra displays tot 4K
- Fanless ontwerp met IP65 front
- Geschikt voor machinebouw en industriële automatisering
