Product Info

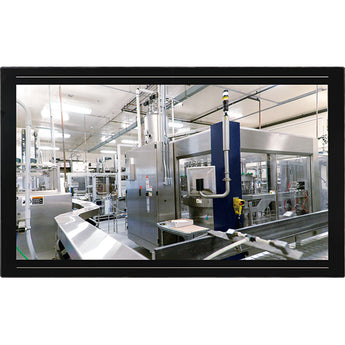

Mitsubishi APPC2160-A01 industriële Panel PC
De APPC2160-A01 is een moderne industriële 21,5 inch Full HD Panel PC uit het Mitsubishi Electric Industrial PC-programma. Deze IPC combineert een krachtig Intel® N97 platform met een groot multitouch display voor industriële visualisatie, machinebediening en dataweergave.
Dankzij het fanless ontwerp, projected capacitive multitouch, dual 2.5GbE netwerkpoorten en moderne uitbreidingsmogelijkheden is deze Panel PC geschikt voor veeleisende industriële toepassingen, dashboards, SCADA-systemen en productieomgevingen.
Belangrijkste kenmerken
- 21,5 inch Full HD industriële Panel PC in 16:9 formaat
- Fanless ontwerp voor industriële betrouwbaarheid
- Intel® Processor N97 Quad Core, 2.0 GHz, 6 MB cache
- 10-point projected capacitive multitouch
- Zero bezel flush front design
- 8 GB DDR5 geheugen standaard
- 2 × Intel® 2.5GbE LAN
- USB-C met DisplayPort ondersteuning
- 2 × M.2 slots en Mini PCIe uitbreiding
- IP65 front panel
Typische toepassingen
- SCADA- en procesvisualisatie
- Machinebediening en operatorstations
- Dashboard- en dataweergavesystemen
- Smart factory en Industry 4.0 toepassingen
- IPC-oplossingen met meerdere netwerken
- Integratie van 5G-, Wi-Fi- of LTE-netwerken
Technische specificaties
| Artikelnummer | APPC2160-A01 |
|---|---|
| Type | Industriële Panel PC / IPC |
| Display | 21,5 inch LED, 16:9 widescreen |
| Resolutie | 1920 × 1080 pixels (Full HD) |
| Helderheid | 500 cd/m² |
| Contrast ratio | 1000:1 |
| Kleuren | 16,7 miljoen kleuren |
| Kijkhoek | 89° boven / 89° onder / 89° links / 89° rechts |
| Touchscreen | 10-point projected capacitive multitouch |
| Touch oppervlak | Anti-scratch oppervlak met 7H hardheid |
| Processor | Intel® Processor N97 Quad Core, 2.0 GHz, 6 MB cache |
| BIOS | AMI BIOS |
| TPM ondersteuning | TPM 2.0 |
| Geheugen | 8 GB DDR5 4800 MHz standaard geïnstalleerd |
| Opslagmogelijkheden | 1 × Key B M.2 2242 SATA + extra M.2 uitbreidingsmogelijkheden |
| Ethernet | 2 × Intel® I226-IT 2.5GbE LAN |
| USB | 2 × USB 3.2 Type-A + 1 × USB-C |
| USB-C functionaliteit | USB 3.2 + DisplayPort 1.4a Alt Mode tot 4K@60Hz |
| Display-uitgangen | 1 × DisplayPort 1.4a + 1 × USB-C DisplayPort Alt Mode |
| Seriële communicatie | 2 × RS232/422/485 auto flow control + 1 × RS232 |
| Audio | Line-out, Realtek ALC888S-VD HD audio codec |
| Uitbreiding | 1 × Mini PCIe, 2 × M.2, nano SIM slot voor Wi-Fi / LTE / 5G |
| Voeding | 24VDC ±20% |
| Beschermingsklasse | IP65 aan de voorzijde |
| Montage | Panel mount, wall mount, stand mount en VESA 100 × 100 mm |
| Bedrijfstemperatuur | 0°C tot 50°C |
| Opslagtemperatuur | -20°C tot 75°C |
| Luchtvochtigheid | 10% tot 90% RH, niet-condenserend |
| Afmetingen | 524,9 × 321,2 × 61,8 mm |
| Gewicht | 7,23 kg |
| Certificeringen | CE approval (EN 55032 / EN 55035), FCC Class A |
| Ondersteunde besturingssystemen | Windows 11 en Windows 10 64-bit |
Moderne industriële IPC voor Industry 4.0 toepassingen
De APPC2160-A01 is een moderne industriële Panel PC die ontworpen is voor geavanceerde visualisatie- en netwerktoepassingen binnen industriële automatisering.
Dankzij ondersteuning voor 2.5GbE netwerken, USB-C, M.2 uitbreidingen en optionele 5G/LTE modules is deze IPC geschikt voor moderne smart factory en Industry 4.0 omgevingen.
- Modern Intel® N97 platform met DDR5 geheugen
- Full HD multitouch widescreen display
- Ondersteuning voor extra 4K displays
- Geschikt voor Wi-Fi, LTE en 5G uitbreidingen
- Fanless industriële uitvoering met IP65 front
